Ford Fairmont 1996
The 1996 Ford Fairmont carries a braked towing capacity of up to 2300 Kg, but check to ensure this applies to the configuration you're considering.
Ford Fairmont 1996 Wheel size
Wheel size for the 1996 Ford Fairmont will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Ford Fairmont vary from 15x6.5 inches to 15x7 inches.
| Ford Fairmont Model | Body Type | Front Tyre Size | Front Rim | Rear Tyre Size | Rear Rim | |
|---|---|---|---|---|---|---|
| base | Sedan | — | 15x6.5 inches | — | 15x6.5 inches | |
| base | Sedan | — | 15x7 inches | — | 15x7 inches | |
| Ghia | Sedan | — | 15x6.5 inches | — | 15x6.5 inches | |
| Ghia | Sedan | — | 15x7 inches | — | 15x7 inches | |
| base | Wagon | — | 15x6.5 inches | — | 15x6.5 inches | |
| base | Wagon | — | 15x7 inches | — | 15x7 inches | |
Ford Fairmont 1996 Price and Specs
Pricing guides
| Ford Fairmont Model | Body Type | Specs | Price from | Price to | |
|---|---|---|---|---|---|
| (base) | Sedan | 4.0L ULP 4 SP AUTO | $3,300 | $5,170 | |
| (base) | Sedan | 4.9L ULP 4 SP AUTO | $3,740 | $5,500 | |
| Ghia | Sedan | 4.0L ULP 4 SP AUTO | $4,180 | $6,160 | |
| Ghia | Sedan | 4.9L ULP 4 SP AUTO | $4,290 | $6,380 | |
| (base) | Wagon | 4.0L ULP 4 SP AUTO | $3,740 | $5,500 | |
| (base) | Wagon | 4.9L ULP 4 SP AUTO | $3,960 | $5,830 | |
Ford Fairmont 1996 Fuel consumption
Fuel consumption for the 1996 Ford Fairmont is dependent on the type of engine, transmission, or model chosen. The Ford Fairmont currently offers fuel consumption from 10.1 to 11.8L/100km. The Ford Fairmont is available with the following fuel type: ULP.
| Ford Fairmont Model | Body Type | Specs | Fuel Consumption | |
|---|---|---|---|---|
| base | Sedan | 4.0L,ULP,4 SP AUTO | 10.1L/100km | |
| base | Sedan | 4.9L,ULP,4 SP AUTO | 11.8L/100km | |
| base | Wagon | 4.0L,ULP,4 SP AUTO | 10.3L/100km | |
| base | Wagon | 4.9L,ULP,4 SP AUTO | 11.8L/100km | |

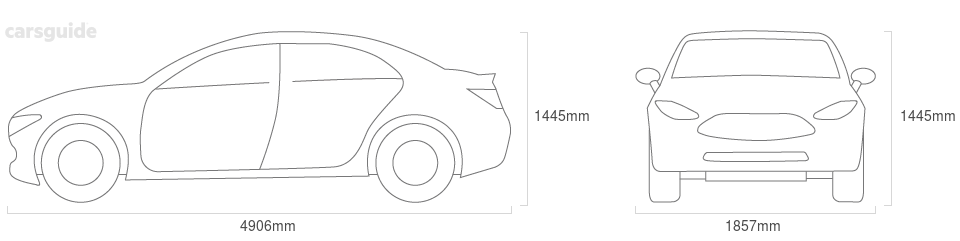

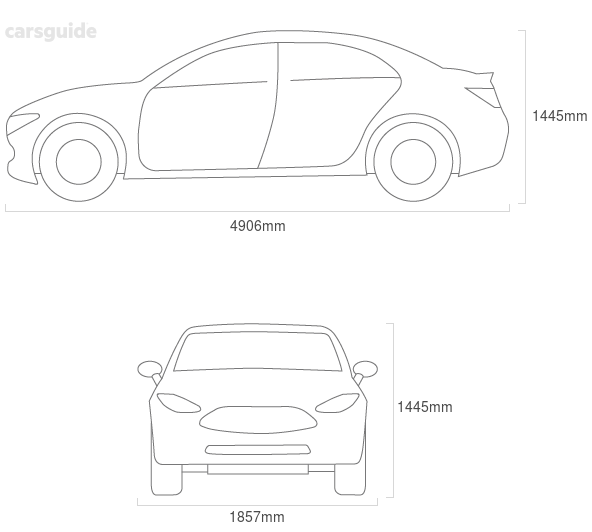

Ford Fairmont 1996 Dimensions
Dimensions for the 1996 Ford Fairmont are dependent on which body type is chosen. The maximum width and height is 1861mm x 1527mm and can vary on the basis of model.
| Ford Fairmont Model | Body Type | Height x Width x Length | Ground Clearance | |
|---|---|---|---|---|
| base | Sedan | 1445x1861x4906 mm | 160 mm | |
| base | Sedan | 1445x1861x4906 mm | 150 mm | |
| base | Sedan | 1445x1857x4906 mm | 150 mm | |
| base | Sedan | 1445x1857x4906 mm | 160 mm | |
| base | Wagon | 1526x1856x5042 mm | — | |
| base | Wagon | 1527x1856x5042 mm | — | |
| base | Wagon | 1526x1860x5042 mm | — | |
Ford Fairmont 1996 Q&As
Check out real-world situations relating to the Ford Fairmont 1996 here, particularly what our experts have to say about them.
-
Ford Fairmont overheating
I'd say the transmission cooler failed in the old radiator and allowed coolant into the transmission. Replacing the radiator has fixed the coolant leak, but it sounds like it's too late for the transmission. Try a transmission service, you might be lucky, if that doesn't do the trick you could be up for a transmission rebuild.
Show more -
Shedding light on gas
THE Falcon converts well to LPG so there won't be a problem with valve recession in the short or medium term, but remember that all cars suffer from valve recession, whether they run on leaded petrol, unleaded or LPG. It's only the rate of valve recession that changes, and the Falcon has shown over many years that it copes with LPG well in standard form. The only system available to you for the EL is a venturi-mixer system, which is old technology compared with the injection systems now being used on more modern cars. Sprint Gas actually uses Italian components, like just about every LPG manufacturer, but it develops the systems here in Australia. The company has been around for a long time and has a good reputation. When the installer says he will dyno-tune the car and start it from cold to make sure everything is working OK, every installer should do that. There will be some degradation in the way the car runs when fitted with LPG, but that's the price you pay for the cheaper fuel.
Show more -
We can't get warm
ACCORDING to Mark Lynch of Carcool Airconditioning, there are three possible causes of ``no heat'' with this EF Fairmont: a blocked heater core, a faulty blend door motor or a broken heater flap shaft. To diagnose the problem, set the control on manual floor and the fan speed at medium and, with your hand over the floor outlet, range the temperature from 16-32 degrees and back. You should feel a variation from cold to warm back to cold, If you do, you have a blocked heater core. If there is no temperature variation, it will be the blend door motor or a broken shaft. You can confirm which one by doing a climate control self-test (refer to a Ford manual) which will confirm an E2 error (blend door faulty) or, if no fault is shown, it will be a broken flap shaft.
Show more
Ford Fairmont 1996 Towing capacity
The Ford Fairmont has maximum towing capacity of 2300kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.
| Ford Fairmont Model | Body Type | Specs | Braked Capacity | |
|---|---|---|---|---|
| base | Sedan | 4.0L,ULP,4 SP AUTO | 2300kg | |
| base | Sedan | 4.9L,ULP,4 SP AUTO | 2300kg | |
| Ghia | Sedan | 4.0L,ULP,4 SP AUTO | 2300kg | |
| Ghia | Sedan | 4.9L,ULP,4 SP AUTO | 2300kg | |
| base | Wagon | 4.0L,ULP,4 SP AUTO | 2300kg | |
| base | Wagon | 4.9L,ULP,4 SP AUTO | 2300kg | |
