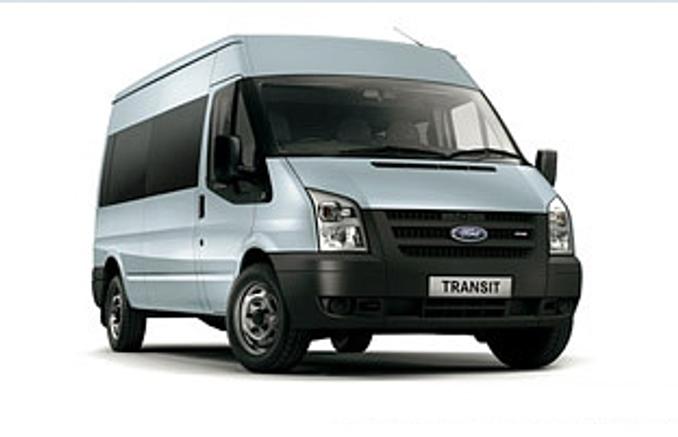

Ford Transit 2010
The 2010 Ford Transit carries a braked towing capacity of up to 3000 Kg, but check to ensure this applies to the configuration you're considering.
Ford Transit 2010 Q&As
Check out real-world situations relating to the Ford Transit 2010 here, particularly what our experts have to say about them.
-
V6 Engines in transit
THANKS Sam, and for anyone thinking of doing the conversion the information about the need to change the diff ratio is important to note. For readers in Victoria, we have been told the Castlemaine Rod Shop is able to do the conversion too.
Show more
Ford Transit 2010 Dimensions
Dimensions for the 2010 Ford Transit are dependent on which body type is chosen. The maximum width and height is 1974mm x 2622mm and can vary on the basis of model.
| Ford Transit Model | Body Type | Height x Width x Length | Ground Clearance | |
|---|---|---|---|---|
| LOW (swb) | Commercial | 2067x1974x4863 mm | 100 mm | |
| Econetic LOW (swb) | Commercial | 2067x1974x4863 mm | 100 mm | |
| LOW (mwb) | Commercial | 2056x1974x5230 mm | 100 mm | |
| base | Commercial | 2031x1974x5931 mm | 100 mm | |
| 12 Seat | People mover | 2369x1974x5680 mm | 100 mm | |
Ford Transit 2010 Price and Specs
Pricing guides
| Ford Transit Model | Body Type | Specs | Price from | Price to | |
|---|---|---|---|---|---|
| (base) | Commercial | 2.4L Diesel 6 SP MAN | $17,600 | $22,330 | |
| Econetic Low (SWB) | Commercial | 2.2L Diesel 6 SP MAN | $7,370 | $10,340 | |
| Extended Frame | Commercial | 2.4L Diesel 6 SP MAN | $19,140 | $24,200 | |
| High (LWB) | Commercial | 2.4L Diesel 6 SP MAN | $12,980 | $17,380 | |
| 12 Seat | People mover | 2.4L Diesel 6 SP MAN | $9,240 | $13,090 | |
Ford Transit 2010 Towing capacity
The Ford Transit’s towing capacity ranges from 1500kg to 3000kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.
| Ford Transit Model | Body Type | Specs | Braked Capacity | |
|---|---|---|---|---|
| LOW (swb) | Commercial | 2.2L,Diesel,5 SP MAN | 2000kg | |
| LOW (swb) | Commercial | 2.2L,Diesel,6 SP MAN | 2000kg | |
| Econetic LOW (swb) | Commercial | 2.2L,Diesel,6 SP MAN | 2000kg | |
| LOW (mwb) | Commercial | 2.2L,Diesel,6 SP MAN | 2000kg | |
| 12 Seat | People mover | 2.4L,Diesel,6 SP MAN | 1500kg | |
Ford Transit 2010 Wheel size
Wheel size for the 2010 Ford Transit will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Ford Transit vary from 15x5.5 inches to 16x5 inches.
| Ford Transit Model | Body Type | Front Tyre Size | Front Rim | Rear Tyre Size | Rear Rim | |
|---|---|---|---|---|---|---|
| LOW (swb) | Commercial | 195x70 R15 | 15x5.5 inches | 195x70 R15 | 15x5.5 inches | |
| Econetic LOW (swb) | Commercial | 195x70 R15 | 15x5.5 inches | 195x70 R15 | 15x5.5 inches | |
| LOW (mwb) | Commercial | 195x70 R15 | 15x5.5 inches | 195x70 R15 | 15x5.5 inches | |
| base | Commercial | 195x75 R16 | 16x5 inches | 195x75 R16 | 16x5 inches | |
| 12 Seat | People mover | 215x75 R16 | 16x5.5 inches | 215x75 R16 | 16x5.5 inches | |
Ford Transit 2010 Fuel consumption
Fuel consumption for the 2010 Ford Transit is dependent on the type of engine, transmission, or model chosen. The Ford Transit currently offers fuel consumption from 7.2 to 10.5L/100km. The Ford Transit is available with the following fuel type: Diesel.
| Ford Transit Model | Body Type | Specs | Fuel Consumption | |
|---|---|---|---|---|
| EXTENDED FRAME | Commercial | 2.4L,Diesel,6 SP MAN | 10.4L/100km | |
| Econetic LOW (swb) | Commercial | 2.2L,Diesel,6 SP MAN | 7.2L/100km | |
| High (lwb) | Commercial | 2.4L,Diesel,6 SP MAN | 10.2L/100km | |
| base | Commercial | 2.4L,Diesel,6 SP MAN | 9.5L/100km | |
| 12 Seat | People mover | 2.4L,Diesel,6 SP MAN | 9.5L/100km | |
