Mazda BT-50 vs GWM UTE

What's the difference?

The MY25 Mazda BT-50 benefits from its robust Isuzu underpinnings to excel in this dual cab-chassis configuration, particularly with Mazda’s premium heavy-duty aluminium tray as fitted to our test vehicle. Fact is, apart from the big drop in payload required to tow 3500kg (but it’s not alone there) it’s hard to find any major flaws. Overall, it’s an excellent workhorse that would be well suited to a multitude of tradie tasks.

In a very competitive ute market, the GWM Cannon XSR represents plenty of bang for your buck, but it’s just not as refined as you’d hope.

It should be better at this price-point, especially when it’ll be unfavourably cross-shopped with lower-spec variants in the Ford Ranger, Isuzu D-Max and Toyota HiLux line-ups.

It’s a nice enough vehicle on-road, and the XSR is an effective 4WD on the dirt without ever being truly exceptional – but that’s fine for those who want to save big bucks and still drive away in a well-equipped twin-locked off-road vehicle.

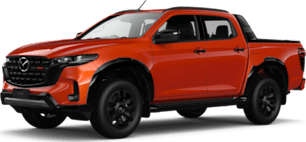

It must be said that Mazda’s stylists did a commendable job with the third-gen BT-50 when it launched in 2020. Five years later it still looks fresh and we’re yet to find anyone who doesn't like its styling, which is in stark contrast to its polarising predecessor.

Its exterior sculpting embodies Mazda’s design language to maintain a strong family resemblance to the popular CX line of SUVs, yet does not detract from the tough and purposeful appearance expected of a 4x4 ute.

The MY25 facelift includes a newly designed front bumper, radiator grille and unique LED headlights. At the rear, pick-up models incorporate what Mazda describes as a ‘mountain-inspired ridged design’ along the bottom edge of the tailgate, along with new LED tail-lights and a larger Mazda logo.

Apart from the mountain-inspired ridged design, also evident on the glove box lid, the latest XTR interior is largely unchanged, blending different shades of grey with satin chrome highlights on the dashboard and door linings, contrasting fabric seat trim, exposed stitching on seams and adjustable centre console air conditioning vents for rear seat passengers.

The XSR is 5439mm long (with a 3230mm wheelbase), 1958mm wide, and 1918mm high. It has a listed kerb weight of 1965kg.

It looks like the mongrel child of a HiLux, Ranger and D-Max – in a good way.

The wider-than-standard wheel track, as well as the snorkel, sports bar, substantial bash plates, tyres and even red brake calipers add to this ute’s presence.

Our test vehicle’s 1910kg kerb weight and 3100kg GVM results in a meaty 1190kg payload rating. However, that drops to 891kg after you deduct the combined weight of the premium heavy-duty aluminium tray (243kg), nudge bar (9.0kg) and towing kit (47kg).

It’s also rated to tow up to the class-benchmark 3500kg of braked trailer but with its 6000kg GCM (or how much it can legally carry and tow at the same time), towing that weight would require a substantial 590kg reduction in payload to avoid exceeding the GCM.

Even though few (if any) BT-50 owners would need to tow 3500kg, it’s important to be aware of these numbers if the need arose, to ensure the combined weight of your vehicle and trailer does not exceed the legal limit.

The premium heavy-duty aluminium tray from Mazda’s genuine accessories range is a nice bit of kit with its Mazda-branded tailgate decals and mudguards.

The tray is almost square with internal dimensions of 1800mm length and 1777mm width. And it has numerous internal load-anchorage points, external rope-rails and a sturdy mesh-style rear window protector, plus removable ‘quick-lock’ ladder racks with fold-down load retainers up top.

There’s also a 1500mm-long underbody drawer with adjustable internal dividers and a four-stage incremental locking system. An HDP (High Density Polyethylene) 25-litre water tank complete with tap and handwash bottle-holder resides under the right side of the tray, with a sizeable and lockable HDP toolbox under the left side.

The driver and front passenger have comfortable bucket seats and the rear bench is also accommodating, with ample head and kneeroom even for tall people.

However, shoulder room would be tight for three big tradies, so like most dual cabs short of a full-size US pick-up it’s tolerable for short trips as a five-seater but works best as a four-seater for longer drives.

Cabin storage includes a large-bottle holder and bin in the base of each front door and the dash has upper and lower glove boxes, an overhead glasses holder and a pull-open compartment to the right of the driver’s knee for small items.

The centre console has an open tray at the front, dual small-bottle/cupholders in the centre and a small box at the rear with a contoured lid that doubles as a driver’s elbow rest.

Rear passengers get a large-bottle holder and small bin in each door, plus storage pockets on the front seat backrests and a pair of pop-out cupholders in the fold-down centre armrest.

The 60/40-split rear bench seat’s cushions can also swing up and be stored vertically if more internal load space is needed. This also reveals two underfloor compartments with lids for keeping valuables out of sight.

The XSR’s five-seat interior is a neat and roomy space but, in line with most utes at this price-point, if you scrutinise it in a critical way you soon discover that some parts feel a bit cheap and flimsy, such as some buttons, dials and switches.

Up front there are two USB ports, a wireless charging pad, a 12V plug and a capacious centre console.

A pair of cupholders can be concealed under a sliding cover and the storage bin is on the right side of big.

The driver gets a six-way power-adjustable seat; the front-seat passenger gets four-way power adjustment. Both seats are comfortable without being too plush.

Second-row passengers get a firm but comfortable seat and amenities include a USB port, a 220V plug, and a fold-down centre armrest.

The second-row seat base can be folded up and out of the way to make room for more gear if only two people are travelling.

Build quality is generally okay, part from the aforementioned flimsy-feeling buttons.

The XSR’s business end, the tub, has a durable-looking tub liner, tie-down points and a handy pop-out step hidden in the top of the tailgate.

But it's worth noting this ute’s tailgate can’t be locked.

The XSR has a manufacturer suggested retail price of $52,990 drive-away.

Standard features include a 9.0-inch multimedia touchscreen system (with Apple CarPlay and Android Auto), a 7.0-inch digital driver info display, quilted leather seat trim, quilted leather door trim, 18-inch black alloy wheels, a sports bar, an assisted tailgate (with a pop-out step) and roof rails.

It also has LED headlights with LED DRLs, side steps, powered mirrors, keyless entry, push-button start, power-adjustable and heated front seats, a leather steering wheel, single-zone climate control air conditioning, an auto-dimming rear view mirror, tinted rear glass, and a six-speaker audio system.

As well, the XSR gets a part-time 4WD system (with 2WD high-range, 4WD high-range and 4WD low-range), rather than full-time 4WD, which is on lower-spec GWM utes; a front differential lock (in addition to the existing rear diff lock) and Cooper Discoverer AT3 all-terrain tyres.

It also gets red brake calipers, an underbody bash plate, wheel arch flares, and a sunroof.

Elsewhere, it gets steel front and rear bumpers and a new black grille.

The BT-50’s drivetrain, shared with its D-Max donor, comprises Isuzu’s proven Euro 5-compliant 3.0-litre, four-cylinder, turbo-diesel that produces 140kW of power at 3600rpm and 450Nm of torque between 1600-2600rpm.

This is paired with an Aisin-sourced six-speed torque converter automatic featuring ‘intelligent’ protocols that prompt downshifting to assist with engine-braking on steep descents (great when towing) and overdrive on the top two ratios optimises fuel economy during highway driving.

It also offers the choice of sequential manual-shifting, which can be handy when hauling and/or towing heavy loads particularly in hilly terrain.

The part-time, dual-range 4x4 transmission features 2.482:1 low-range reduction and a switchable locking rear diff

The XSR has the Cannon’s 2.0-litre four-cylinder turbo-diesel engine that produces 120kW at 3600rpm and 400Nm from 1500rpm to 2500rpm.

It has an eight-speed automatic transmission.

As mentioned, the XSR has part-time 4WD – with 2WD high-range, 4WD high-range and 4WD low-range – rather than the full-time 4WD set-up that’s in standard Cannons.

Mazda claims an official combined cycle (urban/extra-urban) average of 8.0L/100km and the dash display was showing 10.2 at the completion of our 369km test, which comprised a mix of city, suburban and highway driving of which about one third was hauling a near-maximum payload.

Our own figure, calculated from fuel bowser and tripmeter readings, was slightly higher again at 10.6L/100km but still within the usual 2.0-3.0L/100km discrepancy between official and real-world figures and not bad for a two-tonne-plus 4x4 ute.

So, based on our figure, you could expect a realistic driving range of around 700km from its 76-litre tank.

The Cannon XSR has a listed fuel consumption of 9.4L/100km on a combined cycle.

Actual fuel consumption on this test, from pump to pump, was 11.2L/100km but, as is the nature of my testing, I did a lot of low-range four-wheel driving.

The Cannon XSR has an 78-litre tank so, going by that fuel figure above, you could reasonably expect a driving range of about 696km from a full tank.

Note: Drop 30km to 50km from any vehicle’s total calculated fuel-range figure for a better idea of that vehicle’s safe touring range – so, following that advice, the above driving range figure (696km) would become 666km after a 30km safe-distance buffer has been subtracted.

Also, remember that numerous other factors affect your fuel consumption and so impact your driving range, including how much extra weight you have onboard (passengers, camping gear, etc), whether your vehicle is fitted with any aftermarket equipment (bullbar, spare-wheel carrier, etc), whether you are towing (a camper-trailer, caravan, or boat, etc), your vehicle's tyre pressures, and the conditions.

The cabin is spacious and, with side-steps plus large handles on the front windscreen pillars, it’s easy to climb aboard and find a comfortable driving position.

All-around vision is good and active driver aids like blind-spot monitoring, rear cross-traffic alert and reversing camera instil confidence, particularly when hauling taller loads that block rear vision through the central mirror.

The engine is responsive in city and suburban use, thanks largely to its broad spread of torque across a 1000rpm-wide band from 1600-2600rpm that showcases its useful flexibility. The six-speed automatic has well-spaced ratios and shift calibrations that feel like they get the best out of this engine, either unladen or when hauling heavy loads.

It feels well-planted on the road and displays sure-footed handling if driven at appropriate speeds for a high-riding 4x4 ute, combined with excellent steering feel and responsive braking.

The unladen ride is firm, as you’d expect given the heavy-duty rear suspension unique to cab-chassis models, but the combined sprung weight of the tray and tow bar ensure it’s not too harsh.

To test its payload rating we strapped 830kg onto the load tray, which with driver and half a tank of diesel was a snip under its GVM limit. Even so, the rear leaf-springs only compressing 40mm under this loading, which left more than 40mm of bump-stop clearance that ensured no bottoming-out on our test route.

It hauled this big load with competence and a smoother ride quality, given the large increase in sprung weight allowed the heavy-duty rear suspension to do what it’s primarily designed to do.

There was also minimal effect on steering and braking response and the engine’s ample torque was not phased by this payload, particularly on our 13 per cent gradient, 2.0km-long set climb at 60km/h.

Engine-braking on the way down was also robust, highlighting the advantage of larger displacement engines (3.0-litres-plus) on overrun when restraining heavy loads on steep descents.

It also has low engine, tyre and wind noise at highway speeds, where the engine requires less than 2000rpm to maintain 110km/h thanks to its overdriven top gear with full torque converter lock-up.

This ensures the BT-50 is a comfortable and economical highway cruiser, with average fuel consumption that quickly drops into single figures on long hauls.

If you’re not expecting a dynamic, sporty driving experience from the Cannon XSR, then you won’t be disappointed.

I’m enjoying the fact that off-road vehicles from China and India are improving all the time but there are significant trade-offs when opting for a much cheaper version of the ute you actually want.

The XSR is not an insubstantial ute, but that doesn’t excuse its less-than-ideal steering (which feels too loose) or its stiff ride on upgraded suspension which, even though it increases wheel travel (for 4WDing – more about that later), seemingly hasn’t been tuned to suit the XSR’s bigger tyres, wider wheel track and greater bulk than its lower-spec stablemates.

Also, this ute has an unwieldy turning circle of 13.7m, which makes it an interesting vehicle to manoeuvre along busy urban streets or through a bustling car park.

This is a well priced ute if compared to similarly equipped, much more expensive utes, but that doesn’t excuse its touchy throttle and thrashy transmission.

However, its engine, which can feel underdone when challenged, has a relaxed feel about it when open-road cruising and if you aren’t putting too much pressure on it you likely won’t think it’s much of a let-down.

Overall, the XSR does okay on sealed surfaces, without ever getting anywhere near great – it’s simply not as refined or compliant as it could – or should – be.

On the dirt track leading to our 4WD test track, the XSR was very skippy over corrugations and tended to thump through potholes.

This ute does go well off-road though when it comes time for low-range 4WDing but, equipped with front and rear diff locks, that’s to be expected.

Off-road traction control and other systems including hill descent control, are adequate without being as seamlessly smooth as the equivalent systems in more expensive vehicles.

It also has 'Crawl Mode' (allows for no-pedal, low-speed driving) and 'Turn Assist' (which brakes the XSR’s inside rear wheel to reduce the ute’s turning circle on traction-compromised surfaces).

The over-sensitive throttle is far from ideal during low-speed low-range 4WDing when you need absolute control for safe driving, but I did become used to it – or at least I put up with it.

As mentioned earlier, the upgraded suspension has boosted wheel travel, which means you’re more than likely able in the XSR to stretch a tyre to the dirt for better traction and controlled forward progress.

The XSR’s Cooper Discoverer AT3 all-terrain tyres help, especially when the dirt becomes sticky mud that would gum up a lesser tyre, and we had no strife getting up and over one of our more severe set-piece hill climbs on that rubber.

All in all, the XSR is a capable twin-locked 4WD without ever being exceptional – and that’s fine.

The Cannon XSR has towing capacities of 750kg (unbraked) and 3000kg (braked).

The Cannon range has the maximum five-star ANCAP rating from testing in 2021, however the Cannon XSR is not covered by this rating.

Standard safety gear on the XSR includes seven airbags, AEB (sans pedestrian detection) forward collision warning, lane-departure warning, lane-keep assistance, adaptive cruise control, traffic sign recognition, rear parking sensors, a 360-degree camera and tyre-pressure monitoring.

It does not get front parking sensors, lane-change assist or a door-open warning.

Our test vehicle comes with a five-year/unlimited km warranty.

Scheduled servicing is every 12 months/15,000km whichever occurs first.

Mazda’s ‘estimated service cost’ for the first five years/75,000km totals $2547 which is an average of $509 annually.

The XSR is covered by a seven year/unlimited km warranty.

The first service is scheduled at the six-month/5000km mark (and costs $260), then every 12 months or 10,000km, with each service costing $360 a pop.
