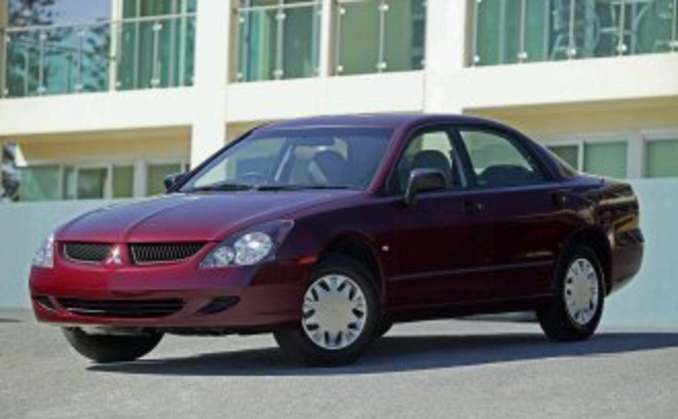

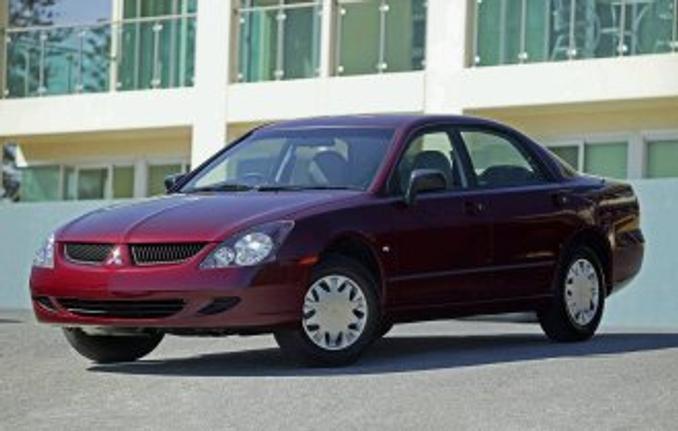

Mitsubishi Magna 2004
This is what Ewan Kennedy liked most about this particular version of the Mitsubishi Magna: Good AWD, Reasonably spacious underbonnet area
The 2004 Mitsubishi Magna carries a braked towing capacity of up to 1500 Kg, but check to ensure this applies to the configuration you're considering.
Mitsubishi Magna 2004 Q&As
Check out real-world situations relating to the Mitsubishi Magna 2004 here, particularly what our experts have to say about them.
-
Why is my 2004 Mitsubishi Magna using so much fuel?
Perhaps part of the reason for the car's high fuel consumption is your statement that it goes like the clappers. Drive it like that and fuel consumption can spiral. That's especially so of this model which, with its all-wheel-drive, had quite a bit more driveline friction than the front-wheel-drive Magnas.
However, 20 litres per 100km on the highway suggests there's something else contributing, so an electronic scan of the car should throw up problems like a blocked catalytic converter, stretched timing chains, or a lock-up torque converter that isn't locking up. Don't forget the basics such as tyre pressures, binding brakes and even the condition of the fuel system including the pump, filter and injectors. One or more fuel injectors which are worn and prone to dribbling when they should be shut off can easily cause fuel consumption to spike.
Show more -
The rear wheels of my 2004 Mitsubishi Magna make a continuous noise with signs of tyre scuffing inside of tyre
Find a new tyre guy. There's clearly something wrong with your car and it needs to be fixed before it's driven any farther. Early Magnas had no provision for altering the rear wheel alignment, but by the time your car rolled off the line, Mitsubishi had changed the design of the rear axle to allow for some wheel alignment adjustment. This is a good place to start.
But really, if you can hear the tyres physically scrubbing while you drive, then you potentially have a bigger problem. And it could be related to a recall that Mitsubishi issued back in 2004. It appears that a bad batch of raw materials meant that the stamped lower control arm on the rear suspension of some Magnas was prone to early failure. The problem became apparent when the arm actually split (at either end) allowing the wheel alignment to become way out of whack. If that's happened to your car, it would explain the symptoms, but also means that it's dangerous to drive at all. At the very least it won't steer properly or predictably and that makes it a danger to other road users.
Show more -
Mitsubishi Magna 2004: Are the shocker towers, front calipers and rotors of a 380 a straight bolt on?
To be sure you need to measure both, preferably side by side, and see if everything lines up.
Show more -
TJ Mitsubishi Magna overheating
If it smells like it's burning then it is probably overheating. Don't take too much notice of the gauge, because it could be faulty. You need to find out why the fan isn't working, which could be because of a wiring issue, a blown fuse, or a burnt-out electric motor, and get it fixed.
Show more
Mitsubishi Magna 2004 Price and Specs
Pricing guides
Mitsubishi Magna Model | Body Type | Specs | Price from | Price to | |
---|---|---|---|---|---|
AWD | Sedan | 3.5L ULP 5 SP AUTO | $4,070 | $6,050 | |
ES | Sedan | 3.5L ULP 4 SP AUTO | $2,970 | $4,620 | |
ES | Sedan | 3.5L ULP 5 SP MAN | $2,860 | $4,400 | |
ES (lpg) | Sedan | 3.5L LPG 4 SP AUTO | $3,080 | $4,730 | |
ES | Wagon | 3.5L ULP 4 SP AUTO | $3,080 | $4,840 | |
LS | Wagon | 3.5L ULP 4 SP AUTO | $3,410 | $5,390 | |
VR | Wagon | 3.5L ULP 5 SP AUTO | $4,400 | $6,490 |
Mitsubishi Magna 2004 Wheel size
Wheel size for the 2004 Mitsubishi Magna will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Mitsubishi Magna vary from 15x6 inches to 17x7 inches.
Mitsubishi Magna Model | Body Type | Front Tyre Size | Front Rim | Rear Tyre Size | Rear Rim | |
---|---|---|---|---|---|---|
Solara | Sedan | 215x60 R16 | 16x6 inches | 215x60 R16 | 16x6 inches | |
ES | Sedan | 205x65 R15 | 15x6 inches | 205x65 R15 | 15x6 inches | |
VR Limited Edition | Sedan | 225x50 R17 | 17x7 inches | 225x50 R17 | 17x7 inches | |
ES (lpg) | Sedan | 205x65 R15 | 15x6 inches | 205x65 R15 | 15x6 inches | |
ES | Wagon | 205x65 R15 | 15x6 inches | 205x65 R15 | 15x6 inches | |
LS | Wagon | 205x65 R15 | 15x6 inches | 205x65 R15 | 15x6 inches | |
VR | Wagon | 215x60 R16 | 16x7 inches | 215x60 R16 | 16x7 inches |
Mitsubishi Magna 2004 Dimensions
Dimensions for the 2004 Mitsubishi Magna are dependent on which body type is chosen. The maximum width and height is 1809mm x 1497mm and can vary on the basis of model.
Mitsubishi Magna Model | Body Type | Height x Width x Length | Ground Clearance | |
---|---|---|---|---|
Solara | Sedan | 1435x1785x4860 mm | 156 mm | |
ES | Sedan | 1435x1785x4860 mm | 156 mm | |
VR Limited Edition | Sedan | 1422x1785x4860 mm | 158 mm | |
ES (lpg) | Sedan | 1435x1785x4860 mm | 156 mm | |
ES | Wagon | 1497x1785x4846 mm | 165 mm | |
LS | Wagon | 1497x1785x4846 mm | 165 mm | |
VR | Wagon | 1497x1785x4846 mm | 165 mm |
Mitsubishi Magna 2004 Towing capacity
The Mitsubishi Magna’s towing capacity ranges from 0kg to 1500kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.
Mitsubishi Magna Model | Body Type | Specs | Braked Capacity | |
---|---|---|---|---|
Solara | Sedan | 3.5L,ULP,4 SP AUTO | 1500kg | |
ES | Sedan | 3.5L,ULP,5 SP MAN | 1500kg | |
VR Limited Edition | Sedan | 3.5L,ULP,5 SP MAN | 1500kg | |
ES | Sedan | 3.5L,ULP,4 SP AUTO | 1500kg | |
ES | Wagon | 3.5L,ULP,4 SP AUTO | 1500kg | |
LS | Wagon | 3.5L,ULP,4 SP AUTO | 1500kg | |
VR | Wagon | 3.5L,ULP,5 SP AUTO | 1500kg |
Mitsubishi Magna 2004 Fuel consumption
Fuel consumption for the 2004 Mitsubishi Magna is dependent on the type of engine, transmission, or model chosen. The Mitsubishi Magna currently offers fuel consumption from 8.9 to 11.8L/100km. The Mitsubishi Magna is available with the following fuel types: ULP and LPG.
Mitsubishi Magna Model | Body Type | Specs | Fuel Consumption | |
---|---|---|---|---|
AWD | Sedan | 3.5L,ULP,5 SP AUTO | 9.4L/100km | |
ES (lpg) | Sedan | 3.5L,LPG,4 SP AUTO | 11.8L/100km | |
ES | Wagon | 3.5L,ULP,4 SP AUTO | 9.6L/100km | |
LS | Wagon | 3.5L,ULP,4 SP AUTO | 9.6L/100km |
