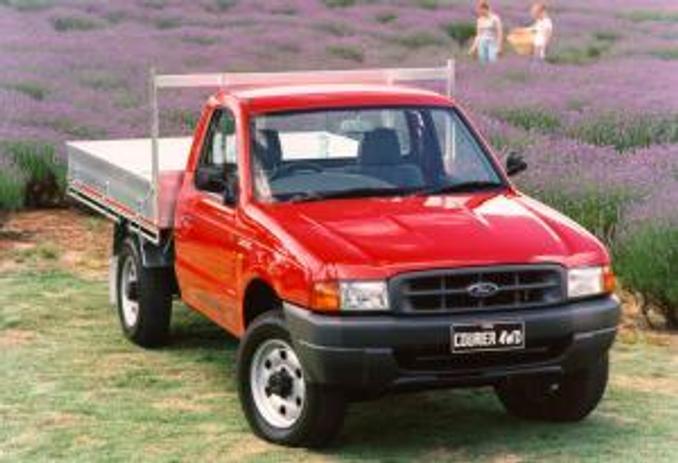

Ford Courier 2002
The 2002 Ford Courier carries a braked towing capacity of up to 1800 Kg, but check to ensure this applies to the configuration you're considering.
Ford Courier 2002 Q&As
Check out real-world situations relating to the Ford Courier 2002 here, particularly what our experts have to say about them.
-
Issues starting my 2002 Ford Courier GL
If the vehicle is running at all, then the fuel pump is working, It’s that simple. And while you’ve changed the pump twice in recent times, have you also replaced the pick-up tube that dangles from the pump and reaches down into the deepest depths of the fuel tank?
Sometimes, these tubes can split (and the split can be hard to see) allowing the pump to suck air rather than fuel if the split is exposed. Which could mean that your car, when parked on a slope sufficient to cover with fuel the split in the pick-up, started no problem. But, when parked on the flat and the fuel in the tank allowed to pool away from the pick-up tube, the split was exposed and the pump was sucking air again. It sounds like a long shot, but it has definitely happened before today.
Show more -
2002 Ford Courier: Faulty fuel pump.
There could be a couple of things going on here. The first is that these engines were old-fashioned mechanical fuel-pump units, so they need to be primed. That involves getting all of the air out of the system before they can start to pump diesel again.
From memory, there’s a manual priming pump in the engine bay (I think near the fuel filter) and the idea is to hand-pump the primer until the plunger starts to feel solid (meaning there’s fuel, not air in there) and then crank the engine till it starts. It can take some time, though. This is precisely why it’s bad form to run an old-school diesel completely out of fuel. Make sure your battery and starter motor are up to the job, too.
The other possibility is that the new pump needs to be timed to the engine. In these set-ups, the pump not only creates the fuel pressure, it also provides the timing for each injector to fire into each cylinder. If this timing is out, the engine won’t run.
Beyond that, look for blocked filters, air leaks in the fuel hoses and blocked fuel lines from the tank. And if in doubt, take it to somebody who knows what they’re doing, because having high-pressure fuel spraying around the place is never a good idea.
Show more -
Timing belt for Ford Courier
The recommended change interval is every 120,000 km, and the cost is around $460.
Show more
Ford Courier 2002 Dimensions
Dimensions for the 2002 Ford Courier are dependent on which body type is chosen. The maximum width and height is 1750mm x 1753mm and can vary on the basis of model.
| Ford Courier Model | Body Type | Height x Width x Length | Ground Clearance | |
|---|---|---|---|---|
| GL | Ute | 1615x1695x4793 mm | 179 mm | |
| GL | Ute | 1615x1695x4998 mm | 179 mm | |
| GL | Ute | 1625x1695x4998 mm | 179 mm | |
| GL | Ute | 1625x1695x4793 mm | 179 mm | |
Ford Courier 2002 Wheel size
Wheel size for the 2002 Ford Courier will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Ford Courier vary from 14x5 inches to 16x6 inches.
| Ford Courier Model | Body Type | Front Tyre Size | Front Rim | Rear Tyre Size | Rear Rim | |
|---|---|---|---|---|---|---|
| GL | Ute | 195R14C-8ply | 14x5 inches | 195R14C-8ply | 14x5 inches | |
| GL | Ute | 205x75R14 | 14x5 inches | 205x75R14 | 14x5 inches | |
| GL | Ute | 205x70R14 | 14x5 inches | 205x70R14 | 14x5 inches | |
| XL | Ute | 195R14C-8ply | 14x5 inches | 195R14C-8ply | 14x5 inches | |
Ford Courier 2002 Price and Specs
Pricing guides
| Ford Courier Model | Body Type | Specs | Price from | Price to | |
|---|---|---|---|---|---|
| GL | Ute | 2.5L Diesel 5 SP MAN | $2,860 | $4,400 | |
| GL | Ute | 2.6L ULP 4 SP AUTO | $2,860 | $4,400 | |
| GL | Ute | 2.6L ULP 5 SP MAN | $2,310 | $3,630 | |
| GL (4X4) | Ute | 2.5L Diesel 5 SP MAN | $3,740 | $5,500 | |
Ford Courier 2002 Towing capacity
The Ford Courier has maximum towing capacity of 1800kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.
| Ford Courier Model | Body Type | Specs | Braked Capacity | |
|---|---|---|---|---|
| GL | Ute | 2.6L,ULP,5 SP MAN | 1800kg | |
| XL | Ute | 2.6L,ULP,5 SP MAN | 1800kg | |
| GL | Ute | 2.6L,ULP,4 SP AUTO | 1800kg | |
| XL | Ute | 2.6L,ULP,4 SP AUTO | 1800kg | |
Ford Courier 2002 Fuel consumption
Fuel consumption for the 2002 Ford Courier is dependent on the type of engine, transmission, or model chosen. The Ford Courier is available with the following fuel types: Diesel and ULP.
| Ford Courier Model | Body Type | Specs | Fuel Consumption | |
|---|---|---|---|---|
| GL | Ute | 2.5L,Diesel,5 SP MAN | — | |
| GL | Ute | 2.6L,ULP,5 SP MAN | — | |
| GL | Ute | 2.6L,ULP,5 SP MAN | 13L/100km | |
| GL (4X4) | Ute | 2.5L,Diesel,5 SP MAN | — | |
